Laser safety film

Laser safety film

PCL-Ventana-Película
Laser safety windows
Characteristics

- not for very powerful lasers
- CE certification and EN207 or EN12254 compliant
- wide range of D LB/AB, I LB/AB, R LB/AB, M LB/AB protection and VLT
- easy to attach to the window

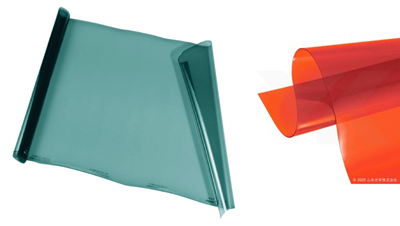

Thin laser protective film to adhere to windows

This laser protection and safety film is easily attached to any polished surface such as windows of buildings or vehicles. It is sufficient to use a slightly soapy liquid between the laser protection film and the window where we want to fix it. In this way, a normal window can be made protective against laser radiation and certified EN 207 or EN 12254.



In the upper button “Download file” you will find all the protection filters of our laser safety films.



List of laser safety film options:



Thickness

Width

VLT

EN12254

OD

PPL-Film-WxL

0.125 mm

1.5 m max.

~40%, blue

180 – 315 D AB5 + IR AB3 (OD 5+)

>315 –330 DIR AB4 (OD 4+)

>330 –350 DIR AB3 (OD 3+)

>350 –372 DIR AB2 (OD 2+)

>372 –390 DIR AB1 (OD 1+)

770 – 855 D AB1 (OD 1+)

>855 –945 D AB2 (OD 2+)

>945 –1400 D AB3 (OD 3+)

POS-Film-1-Xm

0.5 mm

1 m

~40%, clear grey

808 D AB3

1064 D AB3

POS-Film-2-Xm

1 mm

~30%, orange

266  R AB3

355  R AB7

532 D AB5

532  R AB4



Typical use cases are NOT fairings, cabins and enclosures, but existing windows in laboratories and rooms inside which every researcher or operator wears laser safety goggles.



Typical applications of laser protection film:
- conditioning of existing installations for new laser applications
- police and military: protection of vehicles against laser pointers or other types of lasers
- installation on special laser enclosures and laser fairings with curved windows



Please note that the laser protection offered by these different colored films, depending on the protection, is low and for lasers of even moderate power, the use of laser safety windows will be necessary.



As laser safety experts, at PCL we know the right products better than anyone else and we are the distributors of leading manufacturers of PPE and laser protection such as Protect Laserschutz, Laservision or Univet. We have the best catalog to be able to offer you what you really need.



More information: ventas@procarelight.com / +34 605 024 420



All our laser protection and safety products and services:
- goggles and helmets
- windows
- curtains and barriers
- cabins and enclosures
- clothing
- services: advice and consultancy
- training courses



If you work with lasers, you might be interested in our laser power & energy sensors/meters.
