Femtosecond lasers

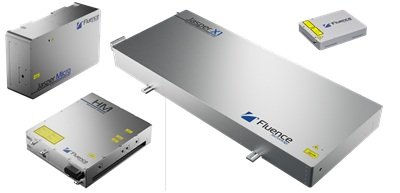

We offer a wide range of femtosecond (fs) lasers for research applications (R&D) and laboratory use as well as for industrial integration as OEM.



And what a tiny little thing a femtosecond is (1 fs = 10-15 s) and how good it is to avoid for example that heat affected zone becomes large in a cutting or ablation process, for example.
Logically the energy of each pulse will be low compared to that of a picosecond or nanosecond laser. But the number of pulses emitted in a burst (or train) of pulses can make the process much more efficient than CW or larger pulses lasers.
Each application has its requirements, and each type of laser has its most advantageous uses. Like (almost) everything in life.



Chart of femtosecond lasers:



Halite 2

Jasper Micro

Jasper Flex

Jasper 10

Jasper 20

Jasper 30

Jasper 60

Wavelength

1030 ± 5 nm

Max. average power

> 2 W

7 W

30 W (ask higher)

10 W

20 W

30 W

60 W

Max. pulse energy

> 100 nJ

5 μJ

30 μJ

50 μJ

100 μJ

200 μJ

200 μJ

  - at rep rate up to

-

1.4 MHz

1 MHz (ask higher)

200 kHz

200 kHz

150 kHz

300 kHz

Max. Burst Energy

-

20 μJ @ 200 KHz

100 μJ @ 200 KHz

100 μJ

200 μJ

300 μJ

200 μJ

Base repetition rate

20 ± 2.5 MHz

20 ± 2 MHz

Repetition rate tuning:

-

Selectable with control software

 - Internal

-

1 – 20 MHz

200KHz - 20MHz

200KHz - 20MHz

150KHz - 20MHz

300KHz - 20MHz

 - with built-in pulse picker

-

Single p.– 2 MHz

Single p.– 1 MHz

Single pulse – 2 MHz

Pulse duration, FWHM

< 230 fs (<100 fs opt)

< 270 fs @ 5 μJ

< 270 fs (<250 fs typ.)

Pulse duration tuning

-

< 270 fs – 8 ps, software controlled (opt. 270 fs – 20 ps)

Wavelength outputs

-

-

515 nm, 343 nm, 258 nm

Burst mode

-

Optional

Included

Ext. gating trigger

-

Included

Ext. analog modulation

-

Included

Laser control software

Included

Pulse on demand

-

Included

In addition:
- femtosecond oscillator
- femtosecond OPA – tunable laser



Some typical applications of femtosecond lasers:

Industrial

Biophotonics - medical

Scientific

Micromachining

Ophtalmology

Pumping of OPA

Materials processing

Biomimaging

Pump and probe in spectroscopy

Display repair

Microscopy in general

FIBS sample preparation for AFM

Polymer cutting

Multi-photon excited fluorescence

Seed for lasers and amplifiers

Surface treatment and structuring

Multi-photon microscopy

Ultrafast science

Jewelry, watches and diamonds

Stents and medical devices

Non-linear optics

Glass and transparent materials

Heat-sensitive polymers



Semiconductors and LED/OLED

Neurosciences



Solar cells and panels

Optogenetics



Two-photon polymerization (2PP)





PCL is pleased to be the distributor of femtosecond expert Fluence Technology: ultrafast lasers that simply work.



And why Fluence fs lasers?
- all-fiber design: all our laser systems maximize use of the fiber design and free-space optics is avoided wherever possible. Our 1030 nm ultrafast oscillator, the most crucial part of every femtosecond laser, is built in all-fiber technology that uses passive interference for modelocking and eliminates degradable components such as SESAM. The robustness of this approach allows our lasers to achieve unprecedented stability and environmental resilience.
- wide temperature range: most of our lasers and components are tested in an environmental chamber as they run to ensure they work exceptionally well in a very wide range of temperatures. The acceptable ambient temperature spans from 15°C to 50°C, while some elements were tested to operate from -10ºC to 100°C, always maintaining their operational parameters.
- shock immunity: we test our systems on a vibrational platform as they run. Our core product (the 1030 nm femtosecond oscillator) was tested to operate at accelerations as high as 40g. The power and repetition rate were always rock solid throughout the test.
- advanced diagnostic: our fs lasers are tested using state‑of‑the‑art diagnostics equipment. We offer the same tools to our customers: compact Real‑time Autocorrelator and Spectral Phase Interferometer.



Here you can also see our femtosecond (and picosecond) supercontinuum (SC) lasers.



Don't forget that if you have or need a laser, you may very well need our PCL services:
- laser safety training
- laser safety consultancy



Or maybe our laser related products:
- laser protection products: goggles & helmets, windows, barriers, curtains, cabins, clothing
- Blink: laser power and energy meter, each pulse, for ultrafast laser up to 1 MHz
- Blueback: Spider based ultrafast laser pulse characterization
- laser beam profile analysis



More information: ventas@procarelight.com / +34 605 024 420

Products
Reference Manufacturer
Mini fs laser 1030 LFL-Halite-2 Fluence Technology
Compact fs laser 1030 LFL-Jasper-Micro Fluence Technology
Fs laser 1030 LFL-Jasper-Flex Fluence Technology
Fs power laser 1030 LFL-Jasper-X0 Fluence Technology
Fs oscillator 1030 LFL-Oscillator-Yb Fluence Technology
Pulse meter LFL-Blueback Fluence Technology
