Characteristics

- all-automated tuning
- signal + idler: 630-1030 + 1030-2600 nm
- SH: 315-515 + 515-630 nm
- FH: 210-258 + 258-315 nm
- IR extension: 2600-10000 nm

Consult us

OPA - Optical parametric amplifier - tunable laser, 210-2600 + 2600-10000 nm

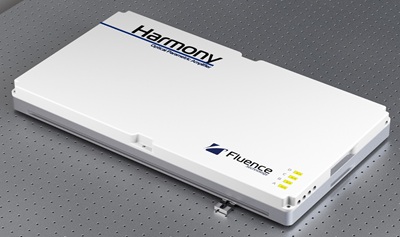

LFL-Harmony es un amplificador paramétrico óptico (OPA) compacto que convierte pulsos ultrarrápidos de láseres basados en iterbio en pulsos ampliamente sintonizables con longitudes de onda que van de 210 a más de 10 000 nm. Está equipado con un mini espectrómetro integrado y puede sintonizarse automáticamente en la gama de longitudes de onda base de 315 a 2600 nm con un software de PC intuitivo y fácil de usar.

¡Sintonización rápida, precisa y totalmente automatizada.

Harmony puede ser compatible con todos los láseres de femtosegundo basados en iterbio, pero funciona mejor con los láseres de femtosegundo de fibra de la familia Jasper, que presentan una vida útil y una estabilidad de apuntamiento del haz excepcionales. Al ser bombeado con la serie Fluence Jasper X0 (10W, 20W, 30W, 60W) o Jasper Flex (30W), puede funcionar a tasas de repetición que van desde un solo pulso hasta 300 kHz y energía de pulso de bombeo de 30 μJ a 200 μJ.

No es un láser sintonizable (TLS) de femtosegundos de bajo coste, es rentable.

Especificaciones del OPA de femtosegundos LFL-Harmony, de Fluence Technology:

	Harmony Basic	2nd harmonic	4th harmonic	IR
Pulse duration of Signal	< 200 fs (measured/calc.)	< 160 fs (calculated)	< 150 fs (calculated)	< 200 fs (calculated)
Size	560 (L) x 300 (W) x 78 (H) mm
Operating temperature	15 - 35˚C
PC software	Included
Automated tuning	Included, via sowftware

Performance and tuning

Output	Tuning range	Conversion efficiency* (BOL**)
Signal and idler	630 – 1030 nm and 1030 – 2600 nm	> 9% (signal) peak conversion efficiency; > 4% (idler) peak conversion efficiency
SH of signal and idler	315 – 510 nm (SH signal) and 520 – 630 nm	> 2% peak conversion eff. For 315-515 & 515-630
FH of signal and idler	210 – 258 nm and 258 – 315 nm On request)	> 0.5% peak conversion efficiency
SH of pump beam	fixed 515 ± 3 nm	> 40% conversion efficiency
IR extension	2600 - 10000 nm (on request)	> 0.4% peak conversion efficiency; > 0.1% in range 2,8-6 µm
* combined signal and idler with respect to input pump laser average power at 200 kHz. SH – second harmonic, TH – third harmonic, FH – fourth harmonic
** BOL - begining of lifetime

Aplicaciones clave del láser sintonizable (TLS) de fs Harmony:
- bombeo y sonda en Espectroscopía
- óptica no lineal
- neurociencias

Here you have a summary of our femtosecond lasers:

	Halite 2	Jasper Micro	Jasper Flex	Jasper 10	Jasper 20	Jasper 30	Jasper 60
Wavelength	1030 ± 5 nm
Max. average power	> 2 W	7 W	30 W (ask higher)	10 W	20 W	30 W	60 W
Max. pulse energy	> 100 nJ	5 μJ	30 μJ	50 μJ	100 μJ	200 μJ	200 μJ
- at rep rate up to	-	1.4 MHz	1 MHz (ask higher)	200 kHz	200 kHz	150 kHz	300 kHz
Max. Burst Energy	-	20 μJ @ 200 KHz	100 μJ @ 200 KHz	100 μJ	200 μJ	300 μJ	200 μJ
Base repetition rate	20 ± 2.5 MHz	20 ± 2 MHz
Repetition rate tuning:	-	Selectable with control software
- Internal	-	1 – 20 MHz		200KHz - 20MHz	200KHz - 20MHz	150KHz - 20MHz	300KHz - 20MHz
- with built-in pulse picker	-	Single p.– 2 MHz	Single p.– 1 MHz	Single pulse – 2 MHz
Pulse duration, FWHM	< 230 fs (<100 fs opt)	< 270 fs @ 5 μJ	< 270 fs (<250 fs typ.)
Pulse duration tuning	-	< 270 fs – 8 ps, software controlled (opt. 270 fs – 20 ps)
Wavelength outputs	-	-	515 nm, 343 nm, 258 nm
Burst mode	-	Optional	Included
Ext. gating trigger	-	Included
Ext. analog modulation	-	Included
Laser control software	Included
Pulse on demand	-	Included
