Spectroscopy Sources

A wide range of broad-spectrum light sources for spectroscopy (or similar) applications. They are perfect for use with our spectrometers.

We offer tungsten halogen light sources covering the visible (VIS), near-infrared (NIR), and even short-wave infrared (SWIR) ranges.

By adding a deuterium emitter to these, we also offer light sources that cover the ultraviolet (UV) range.

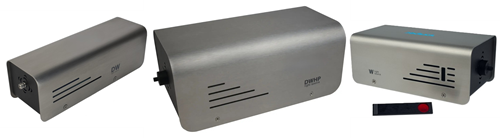

Light sources for spectroscopy UV-VIS-NIR-SWIR:

	MSSLSDW		MSSLSDWHP
Range	185-1100 nm		180-2500 nm
Type	Deuterium Tungsten-Halogen		Deuterium Tungsten-Halogen
Lamp power			30 W (D)	7 W (W-Hal)
Life	1000 h (D)	2000 h (W-Hal)	2000 h (D)	4000 h (W-Hal)
Power consumption, max	6 w		70 W
Filter slot	n		+ slide filter holder (for filters 12.7 mm diam, 3mm max thickness)
Fiber connector	SMA 905		SMA 905 with adjustable focus
Power	12 VDC / 0.6 ADC		24 VDC / 4.5 ADC
Size	200 x 65 x 65 (LxWxH, mm)		250 x130 x 105 (LxWxH, mm)
Weight	800 gr		2.6 Kg

Light sources for spectroscopy VIS-NIR-SWIR:

	MSSLSW7	MSSLSW14	MSSLSW20	MSSLSW25
Range	380-3000 nm
Type	Tungsten-Halogen
Lamp power	7 W	14 W	20 W	25 W
Life	4000 h	4000 h	1500 h	4000 h
Power consumption, max	12 W	19 W	25 W	30 W
Filter slot	+ slide filter holder (for filters 12.7 mm diam, 3mm max thickness)
Fiber connector	SMA 905 with adjustable focus
Power	24 VDC / 2 ADC
Size	200 x 92 x 72 (LxWxH, mm)
Weight	1.1 Kg

These light sources have a spectral power density suitable for general spectroscopy applications.

If you need broadband sources with high spectral power density for applications such as OCT, multispectral or hyperspectral imaging, or remote sensing, please visit our section of supercontinuum (white, broadband) lasers.

More information: ventas@procarelight.com / +34 605 024 420
