NIR-SWIR spectrometer
- very compact (mini or micro spectrometer): 52 x 57 x 17 mm
- designed for industry
- research-grade quality
- wavelengths between 800 and 2100 nm
….but excellent for benchtop and academic use as well.

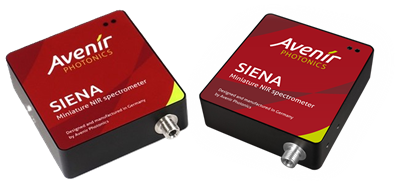

Key Features of the MAP-Siena compact spectrometer in the SWIR (well some people call it also NIR):
- wavelengths up to 2100 nm and down to 800 nm
- Miniature size; some people call them micro-spectrometer or mini-spectrometer: 52 x 57 x 17 mm
- uncooled InGaAs sensor
- built-in dark current compensation: no need for fan or cooling even up to 2100 nm: strong reduction of size and very low power consumption
- high sensitivity / low stray light
- More affordable than ever: we do not offer cheap or low cost spectrometers but we can call them budget or economical spectrometers given their low price compared to their great value.
The Siena takes near-infrared spectroscopy in the NIR / SWIR to a new level. It combines the performance and flexibility of an array-based spectrometer with the size, price and reliability required for mobile applications, OEM and industrial sensors. For the first time it offers wavelength ranges up to 2100 nm with an uncooled InGaAs array sensor.
SWIR spectrometers are usually either high-performance or low-cost. The MAP-Siena delivers the technical performance for precise measurements at a price suitable for integration in portable and industrial sensors or OEM applications. Large absorbance values can be accurately measured due to its superior sensitivity, optimized stray light suppression and high dynamic range. The MAP-Siena opens up countless new possibilities for NIR/SWIR-based sensors.
Chart of models: MAP-Siena SWIR InGaAs spectrometer:
|
Art. |
Wavelength range |
Resolution (*) (FWHM) |
|
|
|
(nm) |
typ. (nm) |
max. (nm) |
|
MAP-SIENA-0940-1700-20 |
940 − 1700 |
8 |
10 |
|
MAP-SIENA-0800-1900-20 |
800 − 1900 |
12 |
14 |
|
MAP-SIENA-0900-2100-20 |
900 − 2100 |
13 |
16 |
(*) Values for 20 um slit
Other relevant facts of the MAP-Siena industrial spectrometer with laboratory performance:
- powerful microcontroller offers on-board auto exposure, averaging, buffering and sophisticated spectrum processing.
- thorough yet user-friendly application software and SDK with demo code, drivers and protocol documentation
- optional user replaceable entrance slits (10, 20, 50, 75, 100, 150, 200, 300 um)
- standard SMA connector, optional optical fiber patch cables
- optional SMA or direct attach collimator
- we are experts in customizations (image sensor, wavelength range, filtering,…)
Image Sensor of the MAP-Siena NIR-SWIR Spectrometer:
| Sensor type | InGaAs |
| Number of pixels | 256 |
| Exposure time range | 4 μs − 10 min |
| Signal-to-Noise Ratio * | 4800 |
| Dynamic Range ** | 14000 : 1 |
| Readout noise *** | 4.7 counts RMS |
| Trigger jitter | ≤ 1 μs |
(*) Max SNR without averaging, sensor gain set to low
(**) Without averaging, for a single pixel
(***) Typ. value for a single exposure, scaled to 16 bit
Optics of the MAP-Siena NIR-SWIR Spectrometer:
| Optical design | Symmetrical high-throughput Czerny-Turner |
| Focal length | 30 mm |
| Numerical aperture | 0.19 (equivalent area) |
| Stray light | 0.08 % |
| Detector lens | Included |
| Order sorting filter | Included (if required) |
| Optical interface | SMA connector (other interfaces on request) |
Our offering in spectral measurement:

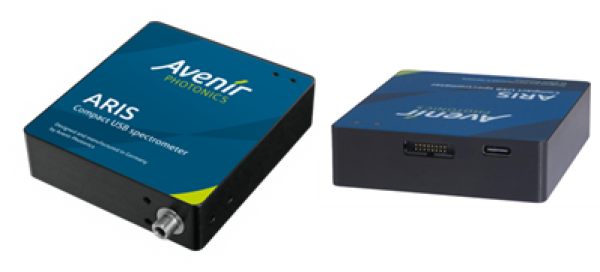

- UV-VIR-NIR (185 – 1100 nm) compact spectrometers: MAP-Aris
- NIR-SWIR (800 – 1100 nm) compact spectrometers: MAP-Siena

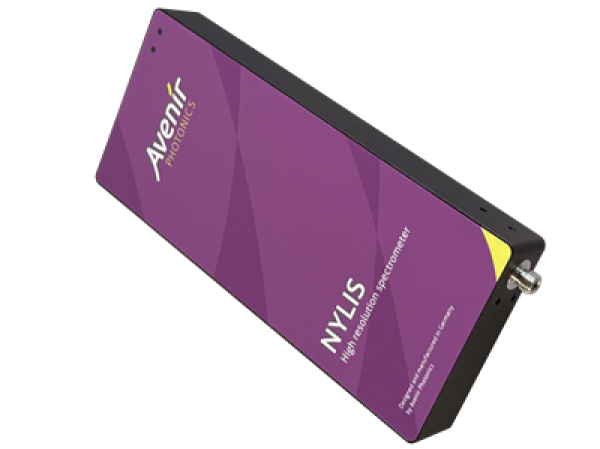

- UV-VIS-NIR (380 – 1100 nm) compact high resolution spectrometers: MAP-Nylis
At PCL we are proud business partners – distributors of the German expert Avenir Photonics for Portugal and Spain.
