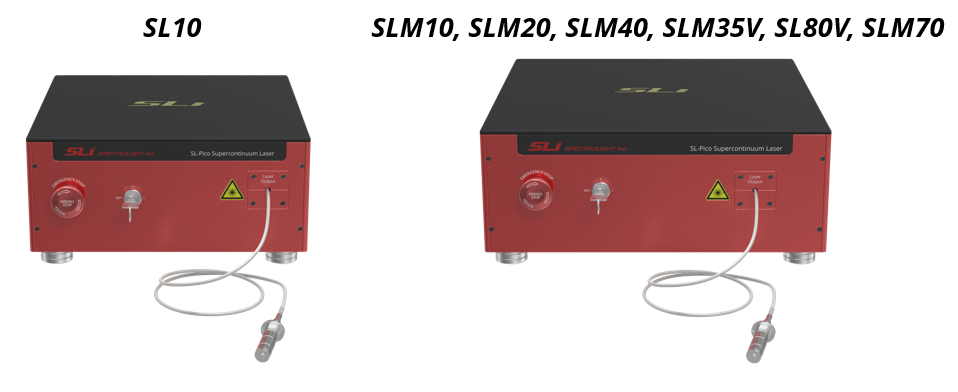

Picosecond SC laser
- <300 ps, <50 ps
- VIS-NIR-SWIR: 410-2400 nm
- ideal to create a tunable laser (TLS)
Spectrolight’s wideband laser is a picosecond pulsed laser that offers solutions to industry and scientific fields that can be applied to various fields, from fluorescence microscopy to time-resolved spectroscopy, such as TCSPC, Hyperspectral imaging, Machine vision, Semiconductors, Sensors, and other applications.
The SL-Pico’s SLM series is a supercontinuum mode-locked fiber laser with a fixed repetition rate and stable and uniform power spectrum in visible range, and the SL-Pico’s SLMV series has a tunable repetition rate in MHz, ensuring compatibility with a wide range of devices.
Specifications of the supercontinuum picosecond lasers LSL-SL-pico:
| SLM10 | SLM20 | SLM35V | SLM40 | SLM70 | SL10 | SL80V (5W) | SL80V (8W) | ||
| Output Power | Visible | 250 mW | 500 mW | 1 W | 1 W | 2 W | 100 mW | 500 mW | 1 W |
| Total | 1 W | 2 W | 3.5 W | 4 W | 7 W | 1 W | 5 W | 8 W | |
| Repetition Rate | 10 MHz | 20 MHz | 0.01 to 40 MHz adjust. | 40 MHz | 80 MHz | 5 MHz | 0.01 to 200 MHz adjust. | ||
| Output pulse width | < 50 ps | < 300 ps | |||||||
| Fundamental pulse width | ~6 ps | ~100 ps | |||||||
| Spectral range, nm | 410 - 2400 | 450 - 2400 | 430 - 2400 | ||||||
| Power stability | < 1 % | ||||||||
| Outpu power control | 0-100 % | ||||||||
| Output type | Armored fiber with collimator | ||||||||
| Beam diam; quality | ~ 2 mm@633 nm; M2<1.1 | ||||||||
| Beam divergence | < 1 mrad (half angle) | ||||||||
| Polarization | Unpolarized | ||||||||
| Out. Fiber length | 1.3 m | ||||||||
| Sync(trigger) Output | NIM Output 0 - (-1) V, TTL Output 0 - 3.3 V | ||||||||
| Electric requirements | AC 100 - 240 V, 50/60 Hz | ||||||||
| Power consumption | 160 W | ||||||||
| Software | SL-Pico v1.0 | ||||||||
| Data interface | USB 2.0 | ||||||||
| Size (L x W x H, mm) | 345 x 358 x153 | 423 x 437 x 165 | |||||||
| Weight | 15,5 Kg | 20.5 Kg | |||||||
Spectral power densities of white lasers LSL-SL-Pico:
LSL-SL-pico provides broadband picosecond-pulsed output for a wide range of research and industrial applications:
|
Main Category |
Representative Applications & Research Areas |
|
Spectroscopy & Optical Characterization |
Absorption spectroscopy, transmission spectroscopy, reflectance spectroscopy, fluorescence spectroscopy, photoluminescence (PL), photoluminescence excitation (PLE), broadband spectroscopy, pump-probe measurements, spectral responsivity measurement |
|
Microscopy & Bio-Imaging |
Fluorescence microscopy, confocal microscopy, light-sheet microscopy, fluorescence lifetime imaging microscopy (FLIM), time-resolved microscopy, TCSPC, biomedical imaging, retinal imaging, multispectral microscopy |
|
Optical Coherence Tomography & Interferometry |
Optical coherence tomography (OCT), spectral-domain OCT, white-light interferometry, spectral interferometry, broadband interferometric imaging, chromatic confocal sensing, optical path-length measurement |
|
Hyperspectral & Multispectral Imaging |
Hyperspectral imaging, multispectral imaging, spectral imaging, hyperspectral camera testing, wavelength-selectable illumination, machine vision, remote sensing, spectral image calibration |
|
Semiconductor, Display & Industrial Inspection |
Semiconductor inspection, wafer inspection, micro-LED and LED inspection, photodetector characterization, image-sensor testing, camera calibration, optical component QC, thin-film inspection, surface-defect analysis |
|
Materials, Nanophotonics & Advanced Optics |
Nanostructure characterization, nanophotonics, photonic crystals, metamaterials, plasmonics, thin-film characterization, nanoparticle analysis, near-field optical microscopy, nonlinear optical characterization, holographic imaging |
|
Metrology, Calibration & Colorimetry |
Spectrometer calibration, detector responsivity calibration, wavelength calibration, optical filter characterization, reflectance and transmittance measurement, display calibration, color measurement, astronomical spectrograph calibration |
|
Environmental, Chemical & Particle Analysis |
Gas absorption spectroscopy, trace-gas detection, chemical sensing, atmospheric spectroscopy, water and air-quality analysis, aerosol analysis, particle characterization, scattering measurements, LiDAR and remote-sensing research |
|
Energy & Photovoltaics |
Solar-cell spectral responsivity, external quantum efficiency (EQE), photovoltaic characterization, perovskite solar-cell research, photocurrent spectroscopy, photocurrent mapping, wavelength-dependent reflectance and transmittance measurement |
|
Fiber Optics & Telecommunications |
Broadband fiber testing, fiber-component characterization, chromatic-dispersion measurement, fiber Bragg grating characterization, WDM and DWDM component testing, integrated photonics testing, optical communication research |
|
Quantum Optics & Photon Science |
Photon correlation, photon counting, single-photon detector characterization, quantum-emitter characterization, time-resolved photon measurements, nanophotonics, wavelength-dependent quantum-optics experiments |
|
OEM & Scientific Instrumentation |
OEM broadband light-source integration, scientific instrumentation, sensor development, optical test systems, laboratory automation, machine-vision illumination, imaging-system characterization, customized wavelength-selection systems |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
In combination with our FWS-Poly-Red tunable filters, these supercontinuum lasers are ideal to generate a tunable laser (TLS) with a large wavelength range.
Certainly these lasers aren’t cheap but you may build cost-effective solutions for the above applications and many others.
We are the distributors in Portugal and Spain of SpectroLight, the expert in SC lasers and in tunable filters.
Don't forget that if you have or need a laser, you may very well need our PCL services:
- laser safety training
- laser safety consultancy
Or maybe our laser related products:
- laser protection products: goggles & helmets, windows, barriers, curtains, cabins, clothing
- Blink: laser power and energy meter, each pulse, for ultrafast lasers up to 1 MHz
- Blueback: Spider based ultrafast laser pulse characterization
- laser beam profile analysis
